BMX Bicykel MONGOOSE LEGION L10/ čierna

Popis

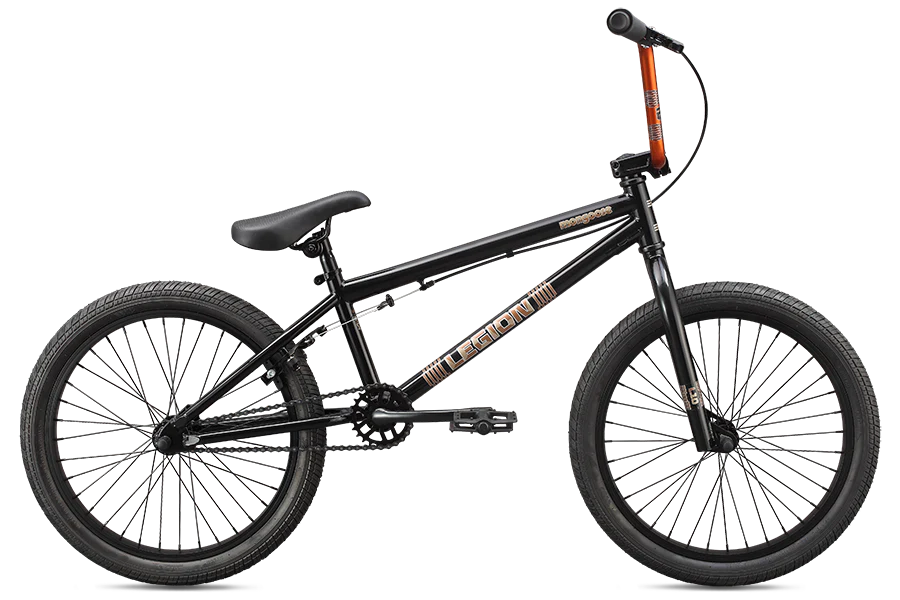

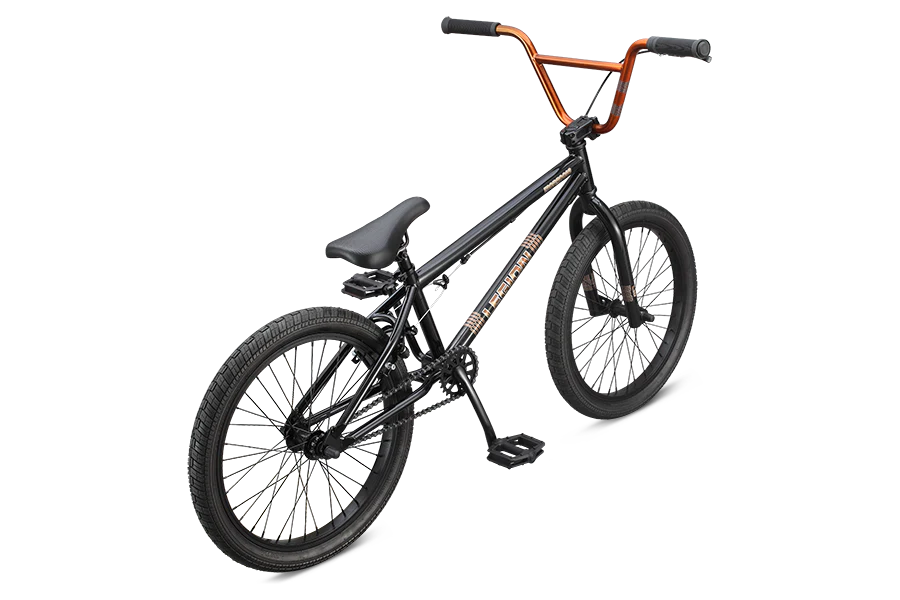

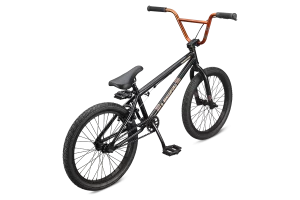

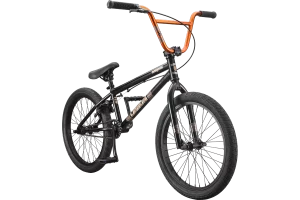

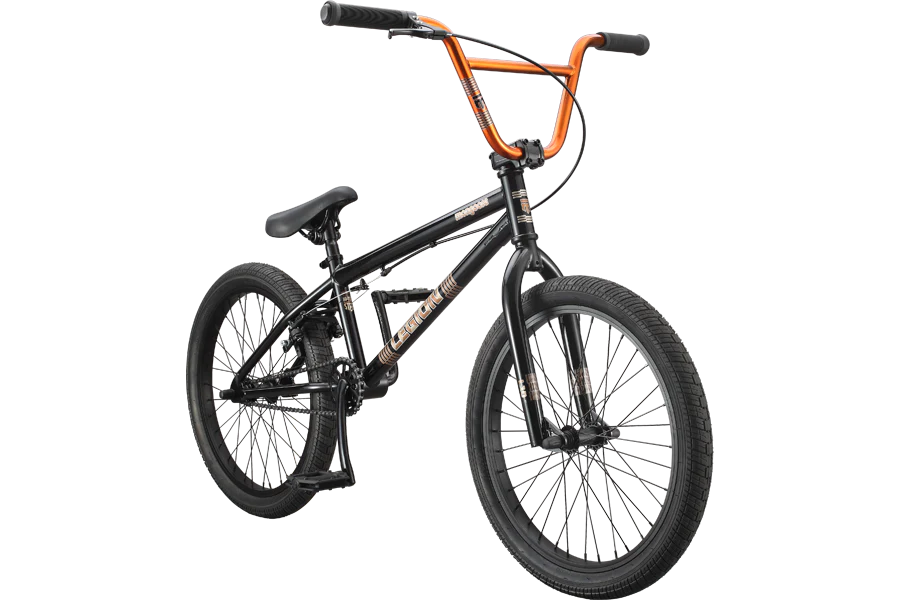

BMX Bicykel MONGOOSE LEGION L10

Mongoose® Hi-Ten oceľový rám a vidlica; 8” riadidlá 3-dielna chromoly rúrková kľuka; 8-drážkové vreteno Jednostenné hliníkové ráfiky 36H; 2,3” pneumatiky

SPECIFICATIONS

FRAMEHi-Ten steel, BMX freestyle geometry

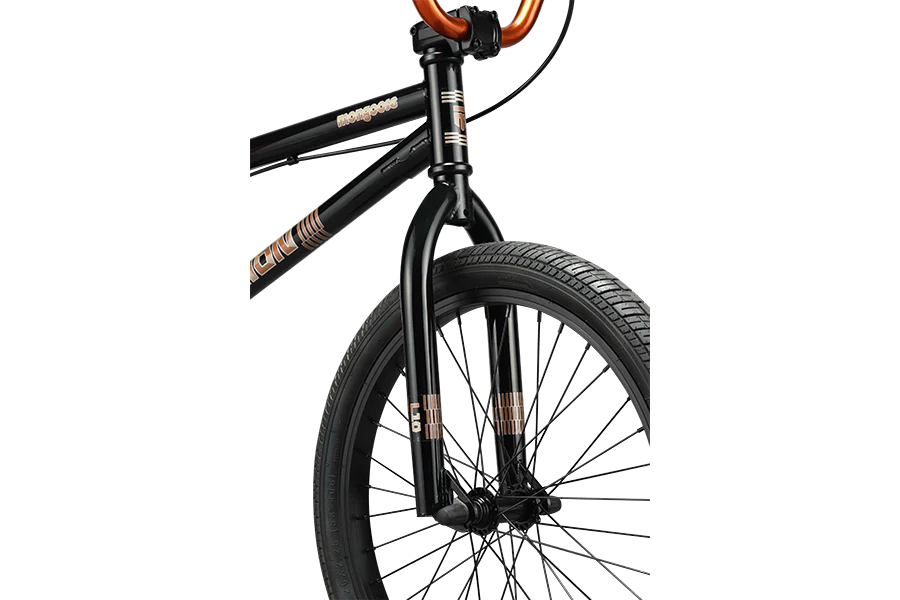

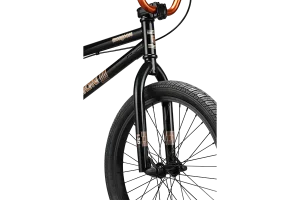

FORKHi-Ten steel

CRANK3-piece, tubular chromoly, 25T steel chainring

CHAINKMC S1

BOTTOM BRACKETAmerican loose ball

REAR COGSingle-speed, 9T cassette driver

RIMSAluminum single wall, 24 mm ID, 36H

FRONT HUBSteel, ball bearing, 3/8 in axle, 36H

REAR HUBSteel, ball bearing, 3/8 in axle, 36H

SPOKES14G, steel, black

TIRES20 in x 2.25 in, wire bead

PEDALSMongoose, nylon

BRAKESU-brake, aluminum

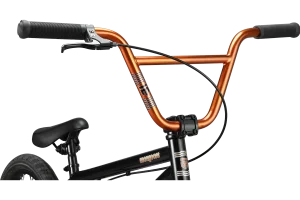

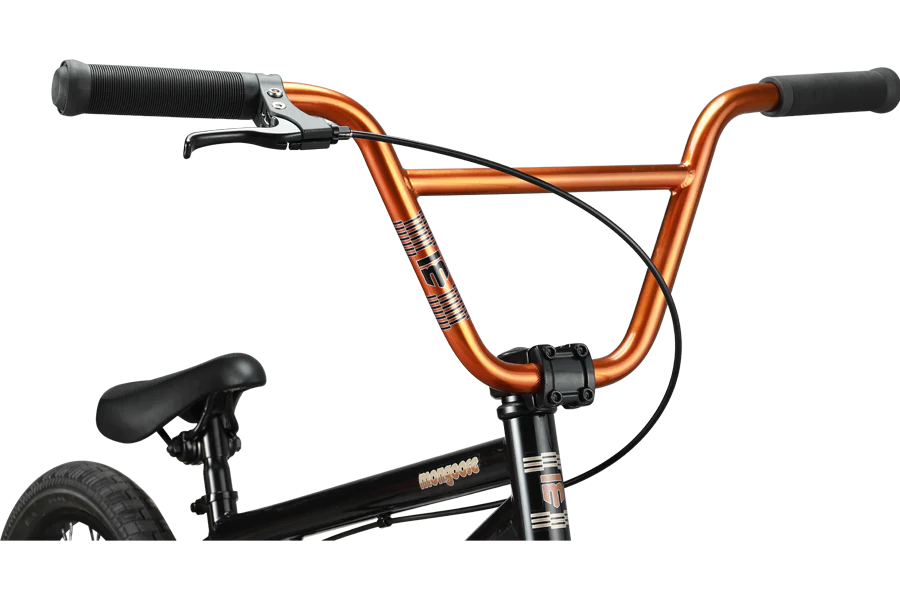

HANDLEBARMongoose, Hi-Ten steel, 27.5 in width, 8 in rise

STEMMongoose, threadless top load, 48 mm

HEADSETThreadless, 1-1/8” external, retainer bearing

SEAT POSTSteel, 250 mm, 25.4 mm

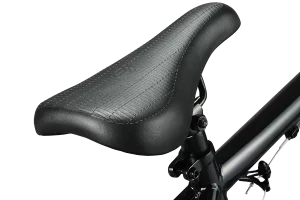

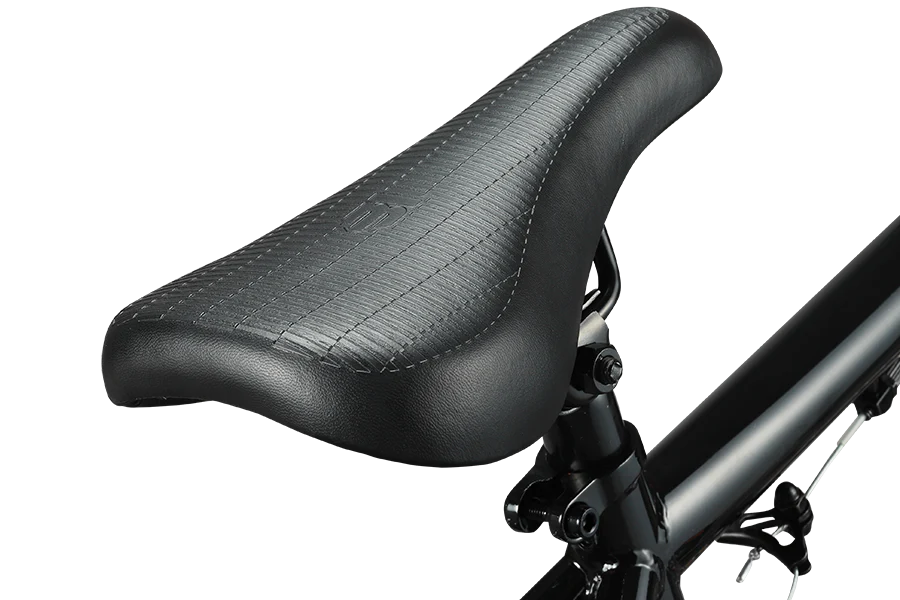

SADDLEMongoose, steel rails

GRIPSMongoose Mush, 145 mm

SIZESOne size

EXTRASBrake detangler

GEOMETRY & SIZING


A	HEAD TUBE ANGLE (DEGREES)	74	74	75	75	72
B	SEAT TUBE ANGLE (DEGREES)	71	71	71	71	71
C	HORIZONTAL TOP TUBE LENGTH (MM)	515	508	427	388	462
D	SEAT TUBE LENGTH (MM)	223	223	203	187	205
E	STANDOVER HEIGHT (MM)	565	555	515	465	520
F	HEAD TUBE LENGTH (MM)	100	100	100	100	100
G	CHAINSTAY LENGTH (MM)	348	348	335	305	366
H	FORK OFFSET (MM)	35	35	37	35	35
I	BOTTOM BRACKET DROP (MM)	40	40	40	40	34
J	WHEELBASE (MM)	916	911	811	742	891
	STEM LENGTH (MM)	48	48	40	40	36
	BAR WIDTH (MM)	700	700	660	660	660
	SEAT POST SIZE (MM)	25.4	25.4	25.4	25.4	25.4
